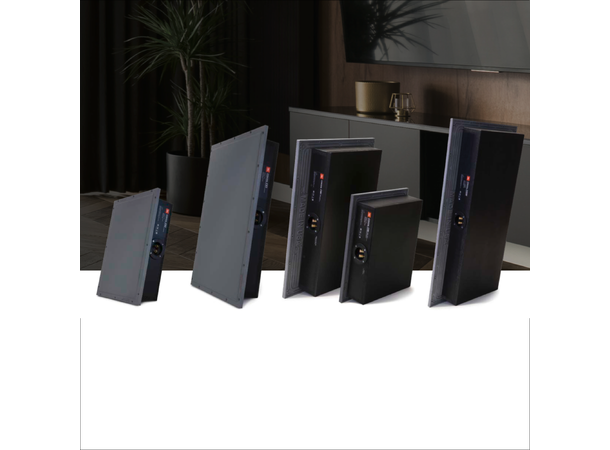

JBL Conceal Series

The JBL Conceal Series combines patented technologies with JBL’s acoustic design to deliver a product that truly disappears into the room. The products in the Conceal Series include a compression molded baffle with a proprietary FidelityGlass™ acoustic panel, an integrated rear enclosure, and advanced transducers and network designs. The products install as easily as a standard drywall patch and feature a paintable surface that can also be custom finished. With a broad hemispherical coverage pattern and no visible components, JBL Conceal Series loudspeakers can be discreetly and optimally located throughout an environment, immersing the listener in great sound that is heard and not seen.

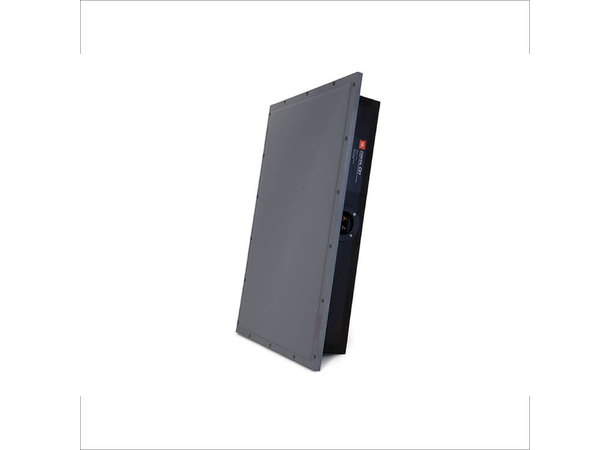

JBL Conceal C83

The JBL Conceal Series are high-performance invisible

architectural loudspeakers featuring a single panel

design with premium acoustic performance.



Features

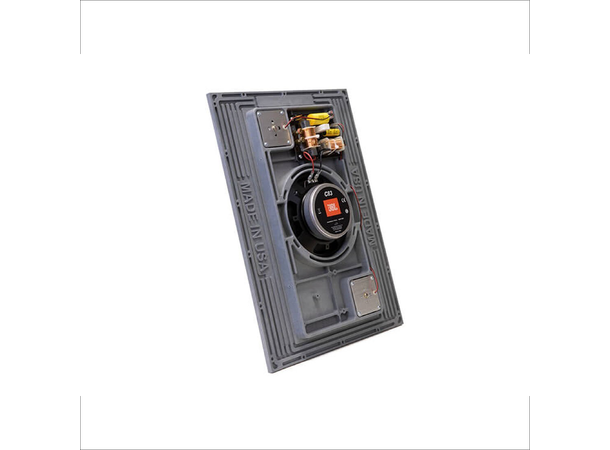

• One-piece design with 8-inch (200mm) woofer and dual MF/HF transducers
• Proprietary FidelityGlass™ acoustic panel and compression molded baffle
• Custom designed transducers with JBL premium acoustic crossover network

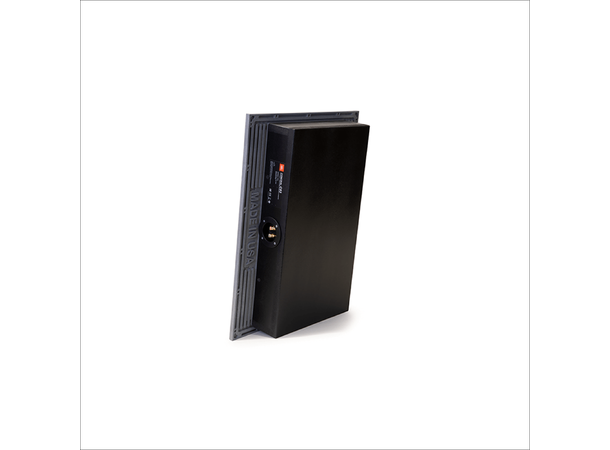

• Integrated wooden back box enclosure for reduced acoustic intrusion into adjacent spaces
• Loudspeaker system installs like a standard drywall patch
• Paintable surface can also be custom finished for complete invisibility

 Specs

• Description: 8-inch (200mm) 3-element Invisible Loudspeaker
• Nominal Impedance: 4 Ohm
• Recommended Amplifier Power: 50 – 160 Watts RMS
• Sensitivity: 84 dB/1W/1m measured in-room
• Frequency Response: 45 Hz – 20 kHz (-6dB) measured in-room
• Driver Technology: Direct-coupled Transducers (HF/ MF) and Acoustic Levered Cone Woofer (LF)
• Panel Size: 559mm H x 403mm W x 98mm D
