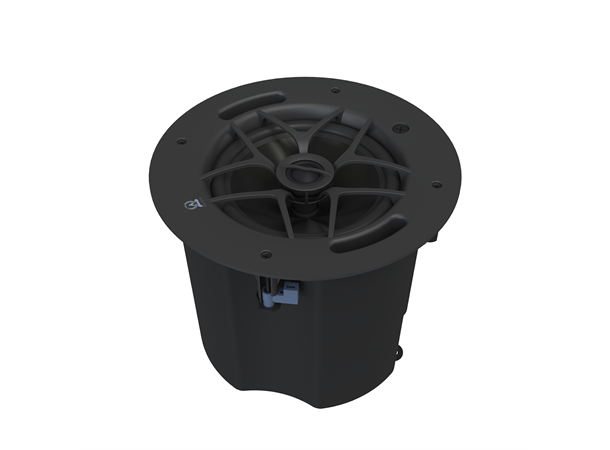

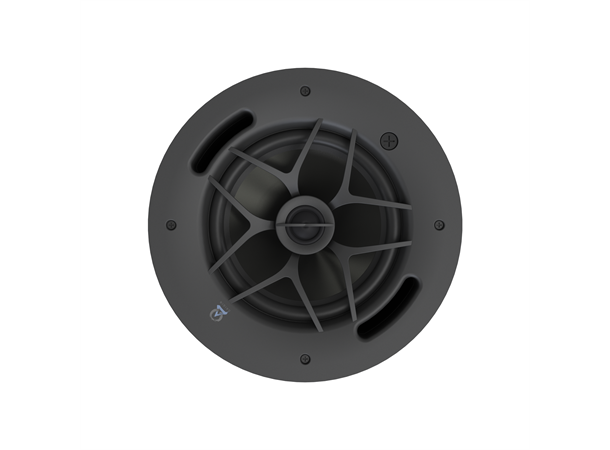

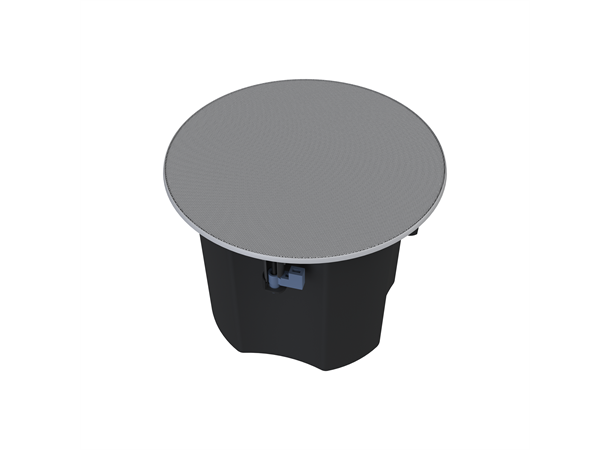

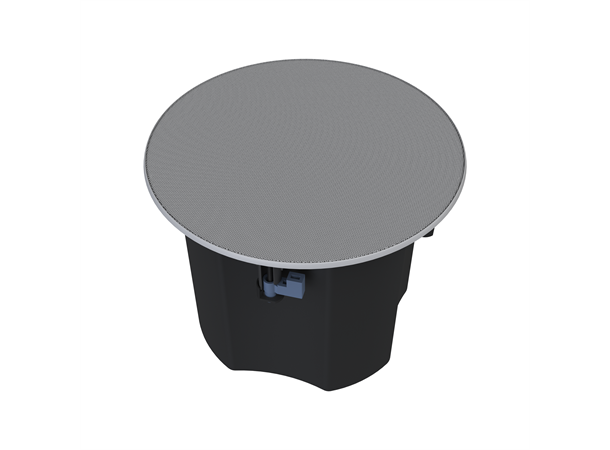

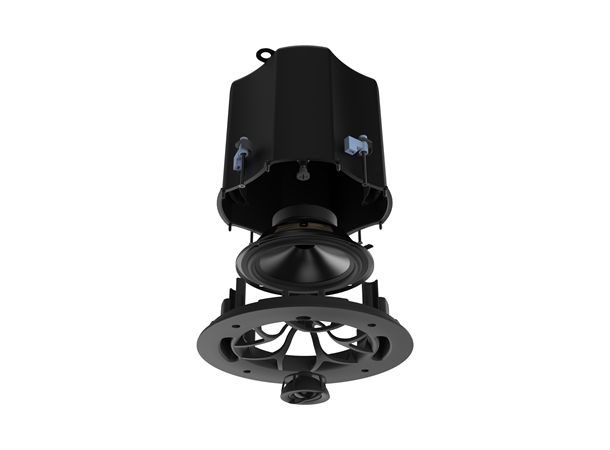

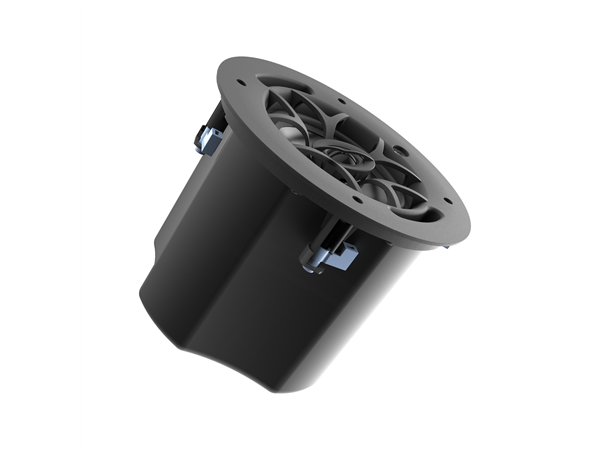

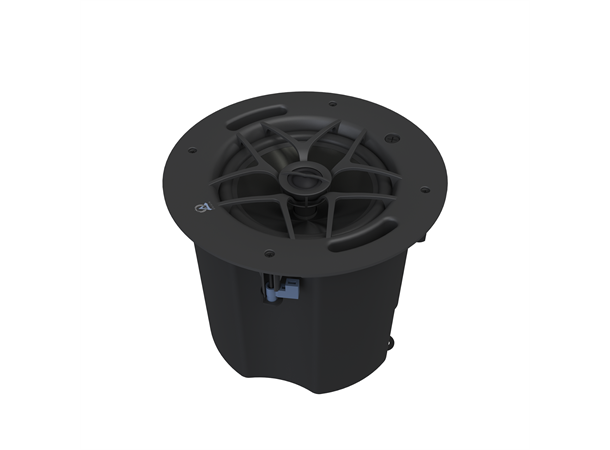

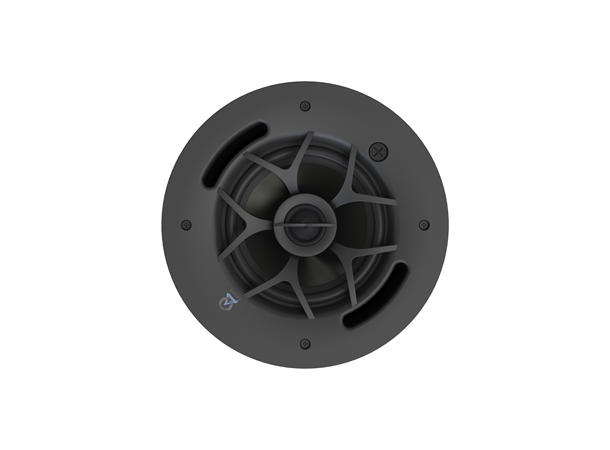

Origin Acoustics PCSUB8 | Innfelt Subwoofer

Origin Acoustics Pro Ceiling Subwoofer er den innfelte subwooferen i Pro-serien. En ekstremt velspillende innfelt subwoofer designet for det kommersielle markedet. Med sin 8" bass i Polypropylen og refleksport i fronten, hjelper denne subwooferen de mindre høyttalerne i serien for å fylle selv de store rommene med dyp lyd. Den har i tillegg integrert bakboks i bakkant for ikke å spre lyden over himlingen og bassporter i fronten for å rette bassen ned i rommet. Dette øker basstrykket og responsen i hele konstruksjonen. Den har krok for å sikre den med vajer i bakktant.

Dette er en høyttaler laget for proffmarkedet, og har derfor en bryter for ønsket drift. Den kan enten spille som en vanlig høyttaler i 8 ohm, eller kan seriekobles i en 100 volts sløyfe, typisk brukt på store installasjoner i restuaranter, butikker, hoteller, kontorbygg og kantiner.

IN-CEILING MODELS

Our In-Ceiling Collection goes above and beyond the competition with integrator friendly features and overall musicality. Each model is a 2-way loudspeaker with a pivoting silk DPSD™ tweeter, utilizing Origin’s patented Multi-Motion Pivot™ for superior aiming and dispersion. With an integrated conduit lock, heavy-duty dog-ears, and secure euro-block connections, this series is ready for installation into even the most challenging commercial environments. Black and white, low-profile paintable grilles reduce ceiling visibility and are available in square or round.

• Front Mounted 6 ohm, 70/100v Tap Switch w/ Premium Transformer
• Bass Enhancing Woofer Ports
• Phoenix Connector & Conduit Lock
• Safety Strap Connection for Seismic Events

SPECS:

• Woofer: 8" IMPP
• Power Handling (Program Power): 200 Watts
• Power Handling (Continuous Pink Noise): 100 Watts
• Frequency Response(-10db): 39Hz - 200Hz
• Frequency Response (-3db): 55Hz - 200Hz
• Nominal Coverage Angle: 180° Conical Coverage
• Sensitivity: 91dB
• Rated Maximum SPL: 112dB
• Impedance: 6 Ohm/70V/100V
• Transformer Taps: 70V - 60W, 30W, 15W, 7.5W | 100V - 60W, 30W, 15W
• Diameter: 286mm
• Cutout Diameter: 266mm
• Grille Diameter: 296mm
• Mounting Depth: 242mm
• Colors: Black
• Grille Color: White
