IP AUDIO SINGLE IN AND OUT
EACH

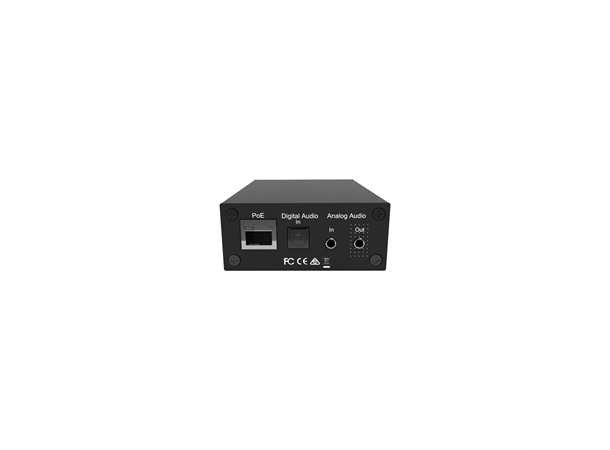

PAV-AIO1C is a bi-directional line-level interface converting a single IP Audio channel to a single analog and / or digital audio signal. An ideal solution for connecting and distributing IP Audio, analog and digital audio sources throughout the Savant IP Audio topology.
KEY FEATURES
- Converts IP Audio Signals to Analog / Digital, bi-directional single I/O connection
- Supports 24-Bit, 96 kHz sample rate
- Power Requirement - PoE Class 3, IEEE 802.3af
- Bi-color Power and Status LED indicators
- Mounting Hardware included
- IP Audio Connector: RJ45
- Transmission Rate: 10/100Mbps
- (1) Digital Line-In; TOSLinkSupports 24-Bit, 96 kHz sample rate
- Audio Operating Level: Analog line-in and Analog line-out, 2Vrms max.
- Output Maximum Level = 2Vrms / +8dBu
- Minimum Output Load Impedance, 5kO
- Frequency Response: 20 Hz to 20 kHz (± 0.5 dB)
- THD+N: < 0.1% (20 Hz to 20 kHz (typical)
- Status Indicators - Ethernet Link and Speed (2, rear panel); Sync (front panel)
- Ambient Operating Temperature: 0° C to 40° C
- Power Requirement: PoE Class 3, IEEE 802.3af
