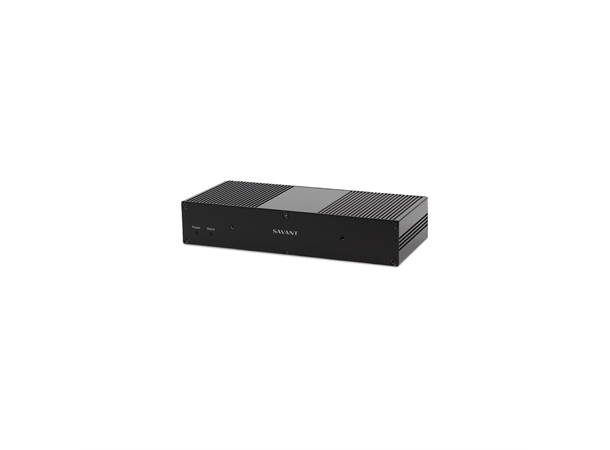

Savant ProAV 16 kanals audio-matrise.

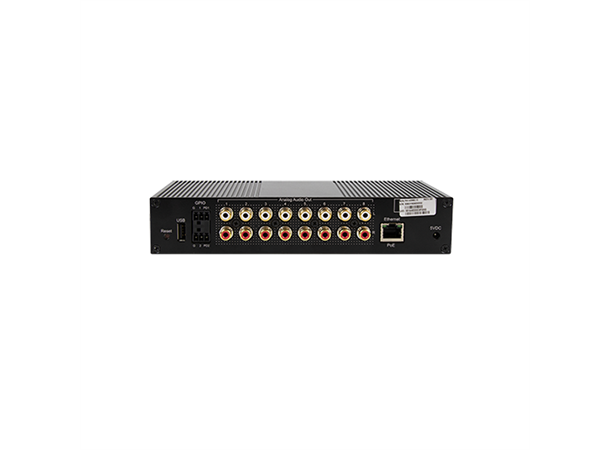

The Savant IP audio output uses an existing IP Network via AVB to distribute Audio, this product is a multi channel audio output that can receive up to 8 streams of Audio from the AVB network and send them out any of the analog stereo out channels. This product supports mute, volume control, PEQ, mono and up to 160 ms of delay in 1 ms steps. There are also GPIO ports to trigger an external amplifier, as well as a POE Port.

Nøkkelfunksjoner:

• 8 stereo pairs (16 channels) of audio output switching
• Any stream from the
• AVB network can be routed to any channel
• Includes audio Processing:
• Mute/Un-Mute
• Volume Control
• PEQ
• Mono Summing
• Delay - 1 to 160 ms, 1 ms steps
• Control Ports -  2 GPIO
• Supports PoE

Environmental

- Temperature: 32° to 104° F (0° to 40° C)

- Humidity: 10% to 80% (non-condensing)

Dimensions

- Height: 1.6 in (4.15 cm)

- Width: 8.5 in (21.5 cm)

- Depth: 3.7 in (9.33 cm)

- Weight: 1.4 lb (0.64 kg)

- Shipping Weight: 2.3 lb (1.05 kg)

Power

- Input Power: 5V DC 3A

- Maximum Power: 15W

Compliance

- Safety & Emissions: FCC Part 15B | CE Mark | C-Tick

- RoHS Compliant

Minimum Supported Requirements

- Release: Savant OS: da Vinci 8.10.1, or if you are in 9, 9.1.1 minimum is required.
